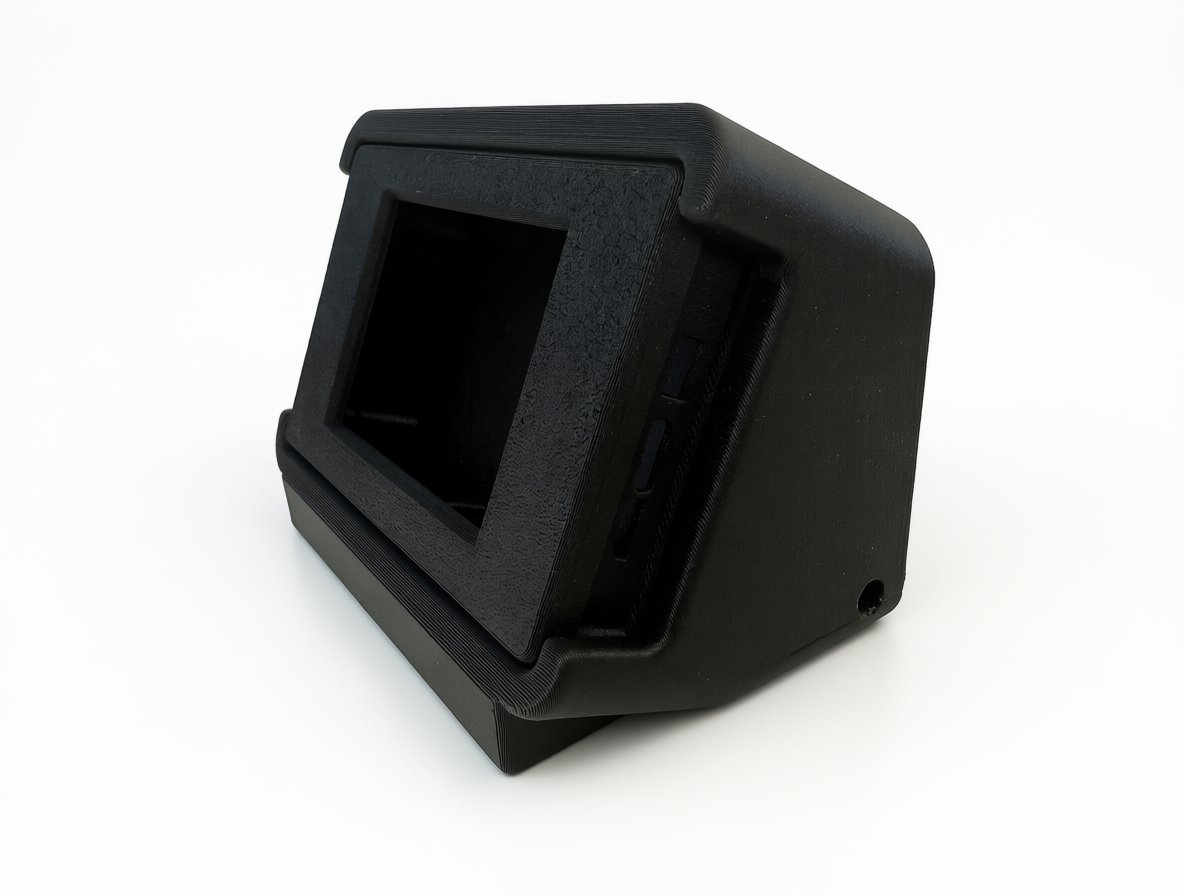

Retro 3D Printed Enclosure Case for ESP32 CYD Ticker with Stand

Description

Transform your ESP32-2432S028R (Cheap Yellow Display) into a sleek, retro-styled financial ticker with this custom 3D printed enclosure! Perfect for the CYD Ticker project from Tickertronix, this enclosure houses the display unit while providing a professional, vintage-inspired look for your desk or workspace. Display real-time stock, crypto, and forex data with color-coded price changes on a 320×240 touchscreen, all in a portable, stand-alone package.

Note: To run the Tickertronix firmware, a Raspberry Pi Hub must be built to support the device. It can utilize a Raspberry Pi Zero 2W (minimum) or more powerful variants for data fetching and API services.

This enclosure is designed specifically for the CYD Ticker firmware, which pulls data from a local Tickertronix Hub via WiFi. It’s easy to assemble and complements the ESP32’s built-in touchscreen provisioning for hassle-free setup—no soldering required!

Key Features:

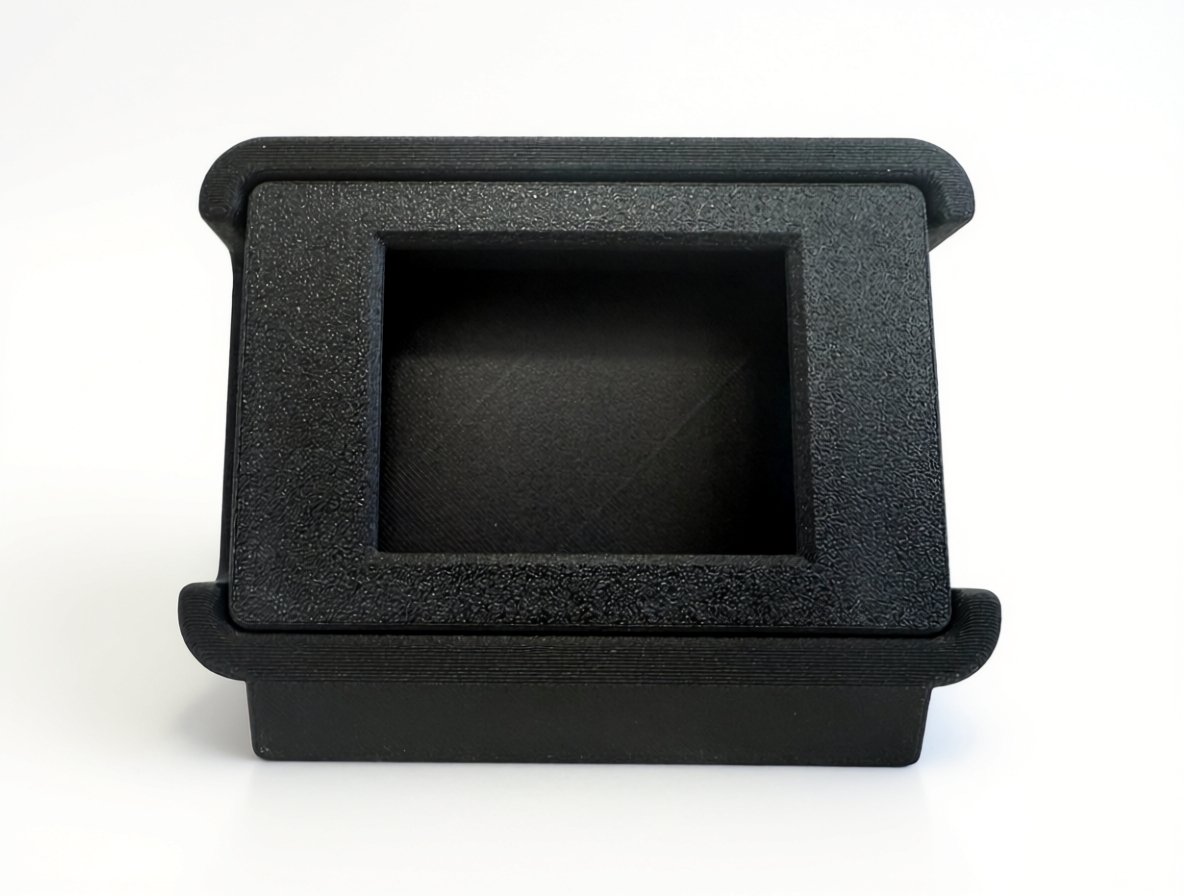

• Retro Design: Vintage-inspired bezel and angled stand for optimal viewing on any desk.
• Full Protection: Encloses the ESP32-2432S028R board, display, and touchscreen while allowing USB-C access for power and programming.
• Secure Assembly: Uses brass heat-set inserts and M2 x 20 socket head cap screws for a sturdy, professional fit.
• Cable Management: Dedicated slot in the holder for routing the USB-C cable.
• Compatible with CYD Ticker Project: Works seamlessly with the Tickertronix CYD Ticker firmware for real-time market data display.
• Durable Material: Printed in high-quality PETG-GF (PETG with glass fiber reinforcement) for enhanced strength and durability.
• SD Card Accommodation: Recessed portion in the case allows the microSD card to fit securely on the board (no external access slot).

Specifications:

• Dimensions: (Approximate – based on design; confirm with STL files)
  • Frame: Fits 320×240 display area

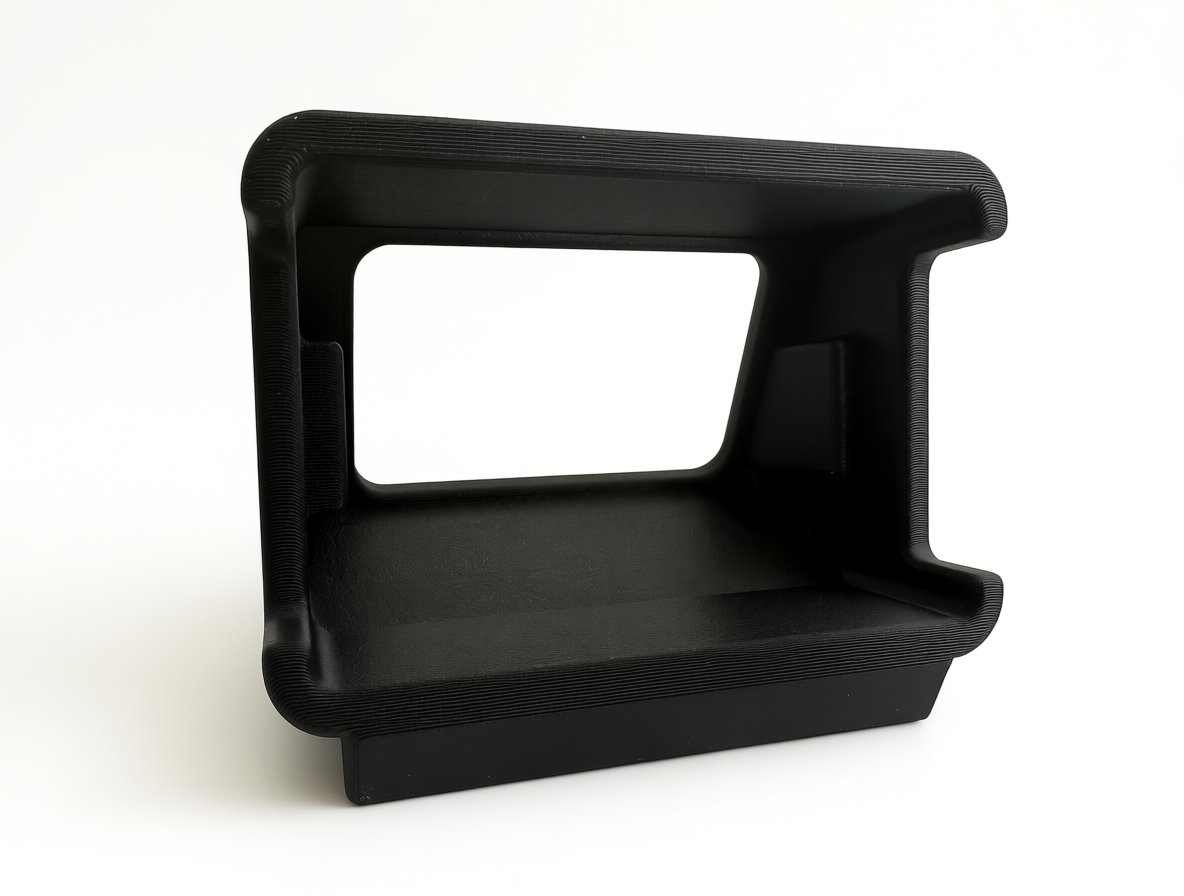

  • Holder: Angled stand for desk placement
  • Back: Secure screw-on cover
• Material: PETG-GF (PETG reinforced with glass fiber)
• Compatibility: ESP32-2432S028R (Cheap Yellow Display) with ILI9341 touchscreen
• Assembly Time: 5-10 minutes (requires Allen wrench for M2 screws)
• Weight: Lightweight (~200-300g)
• Hardware Included: Brass heat-set inserts (pre-installed in enclosure) and M2 x 20 socket head cap screws (4x)

What’s Included:

• 3D Printed Enclosure Kit (3 pieces: Frame, Holder, Back Cover) – Pre-printed and ready to assemble
• Brass heat-set inserts (pre-installed in enclosure)
• M2 x 20 socket head cap screws (4x)

Assembly Instructions:

1. Insert the ESP32-2432S028R board into the frame (align with recessed areas).
2. Secure the back cover to the frame using the included M2 x 20 socket head cap screws (brass inserts are pre-installed).
3. Place the assembled unit into the angled holder for display.
4. Route the USB-C cable through the holder slot and connect for power.
